Solar Switchboard Upgrade for Chelmer’s Air Conditioning System

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade that supports a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—no three-phase upgrade was required.

Choose Precision Electrical & Air for Your Essential Switchboard Upgrade

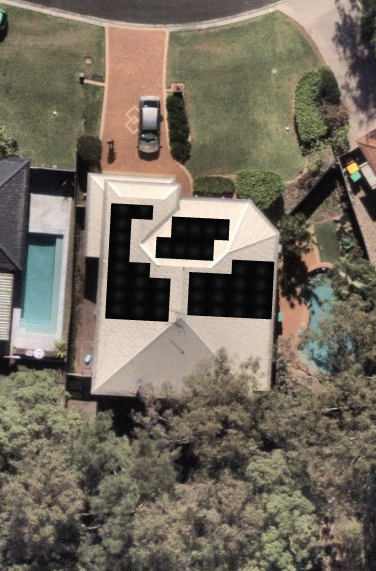

This homeowner in Chelmer undertook a significant renovation project involving the installation of a robust 17.86kW single-phase solar photovoltaic (PV) system, an advanced 30kWh modular battery storage solution, and comprehensive blackout protection for the entire residence. In addition, a new ducted air conditioning system was integrated to enhance comfort and energy efficiency. Before linking these sophisticated systems, it was imperative to assess and improve the existing switchboard to ensure compliance with the latest standards and to effectively manage the increased electrical loads introduced by these modern installations.

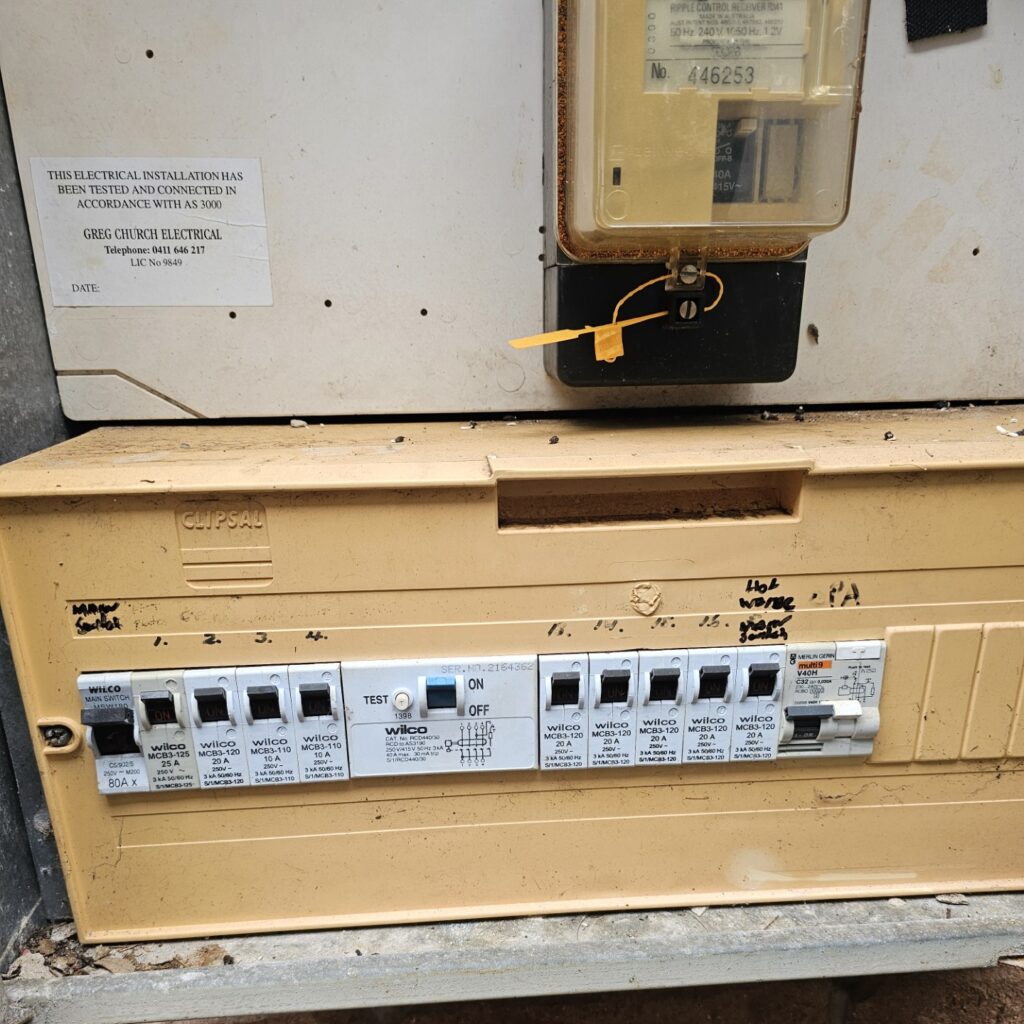

The existing switchboard was outdated, featuring obsolete circuit breakers and only a single Residual Current Device (RCD) that provided limited protection for the entire property. It lacked the capability to support solar energy integration and battery storage, which are critical for modern energy solutions. Furthermore, the circuit labeling was inadequate, making it non-compliant with contemporary regulations governing energy generation systems. This lack of compliance posed significant risks to the safe and efficient operation of the newly upgraded systems, highlighting the need for urgent action.

Is a Three-Phase Upgrade Really Necessary for Your Electrical System?

When assessing the specifications of a 17.86kW solar system paired with a 30kWh battery, many homeowners mistakenly believe that a three-phase upgrade is essential for optimal operation. This common misconception can lead to substantial financial implications for the homeowner, potentially resulting in costs ranging from £3,500 to £6,000, in addition to a lengthy wait for approval from Energex for necessary network modifications.

Conducting a Comprehensive Initial Technical Assessment

Two critical factors were pivotal in determining the necessity of a three-phase upgrade. Firstly, the supply cable for the residence is strategically located near the street junction. This advantageous position allowed the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, as the solar and battery systems are designed specifically to reduce demand on the grid rather than increase it, the network provided no technical justification for a three-phase upgrade. Additionally, the ducted air conditioning system was verified to comply with the essential parameters for efficient single-phase operation, further affirming this decision.

Consequently, the decision was made to retain the existing single-phase configuration. The switchboard underwent an upgrade to ensure it could safely and competently handle all new electrical loads without compromising safety or compliance with regulatory standards, thereby enhancing the overall efficiency of the electrical system.

Thorough Examination of Installed Components for Enhanced Safety and Compliance

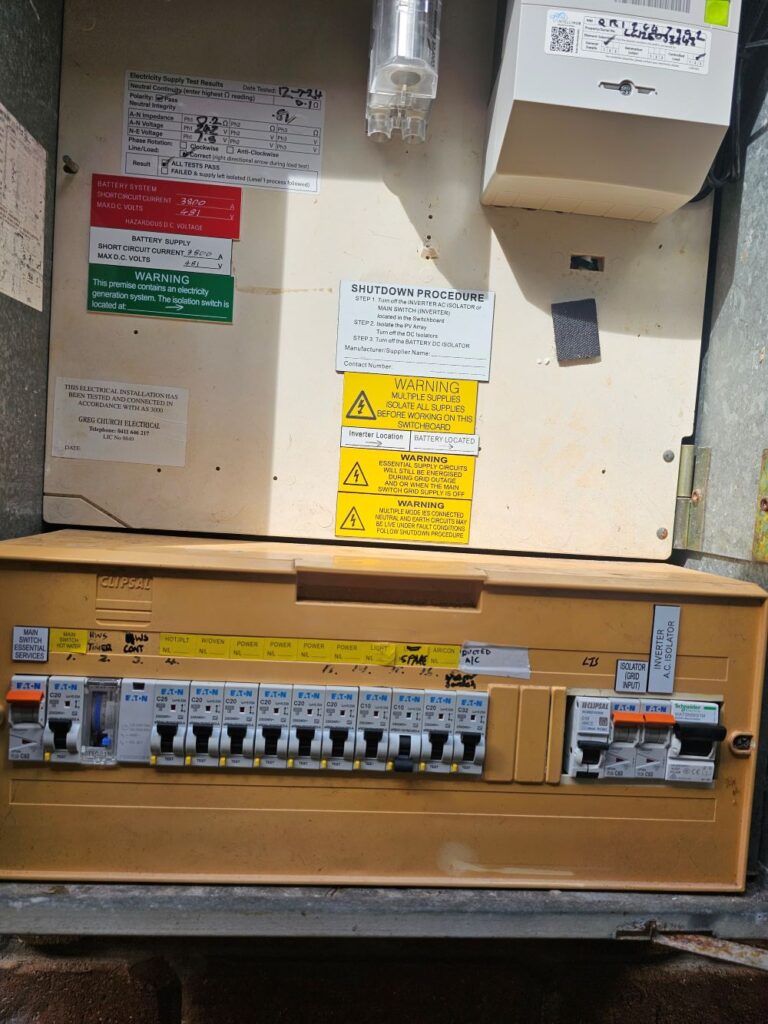

The existing switchboard underwent a complete dismantling and meticulous reconfiguration process. Every circuit breaker was replaced with new, appropriately rated units from Eaton, with each breaker meticulously labelled for easy identification. The circuits were carefully separated, ensuring that power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits. This separation enhances safety while ensuring compliance with current regulations governing electrical installations.

A timer was also integrated into the hot water service to guarantee its efficient operation during peak solar generation hours. This strategic addition significantly reduces reliance on the grid by optimising the utilisation of the solar system's output throughout the day. Additionally, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure proper functionality and efficiency, making the system more reliable.

The upgraded switchboard was meticulously designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, as well as multiple supply warnings and a complete shutdown procedure. All electricity supply tests were successfully conducted and documented for the switchboard, ensuring its readiness for future demands.

The completed switchboard now fully complies with the latest Australian standards, ensuring it is appropriately configured for any future electrical service work required at the property, thereby providing peace of mind for the homeowner.

Homeowner Reaps Rewards from Successful Upgrade

The homeowner has successfully acquired a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all operating efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenses associated with a three-phase upgrade that was not essential for their unique circumstances, thus maximising their investment.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be crucial in specific scenarios, they are not universally required. If you have obtained a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a thorough analysis for you. Our experts will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property.

We guarantee no upselling occurs; you will receive an accurate evaluation tailored specifically to your home and its needs.
