Victorian Tile Restoration Found Beneath Carpet Layers

Discover the Hidden Issues Lurking Beneath Your Carpet: Elevate Your Victorian Tile Restoration in Penkhull

Comprehensive Evaluation of Initial Flooring Conditions

If your Victorian tile floor has been concealed beneath carpet for an extended period, the primary concern often lies not with the visible dirt. Instead, what lies beneath frequently reveals a floor marked by the history of what has taken place beneath the covering. In Penkhull, the homeowner uncovered a dim and uneven hallway floor that stood in stark contrast to the decorative entrance feature designed to welcome visitors.

Upon removal of the carpet, the original geometric and encaustic tiled hallway displayed flat colours, dull patches, and areas where the surface appeared fatigued rather than merely dusty. Although the intricate patterns remained intact, the floor had absorbed residues from previous coverings, household cleaning agents, and years of moisture that had been trapped beneath an impermeable layer.

Penkhull, located in the City of Stoke-on-Trent within the ST4 postcode area, is renowned for its high density of late Victorian and Edwardian terraced houses, as well as larger villas and inter-war suburban developments along Trent Valley Road and Prince’s Road. Original Victorian tile floors are primarily found in entrance hallways, vestibules, porches, and main reception areas, where geometric and encaustic designs were used to create a striking decorative first impression. Much of the housing stock dates back to the rapid expansion of the Potteries during the mid to late 19th century, with solid-wall terraces and period properties significantly contributing to the character of the area today. Penkhull retains a rich heritage identity, as reflected in its older street layouts, historical workers’ housing, and enduring architectural features connected to Stoke-on-Trent’s industrial growth.

During the 19th century, Penkhull experienced rapid development as the pottery industry, railway connections, and associated engineering trades prompted significant population growth across Stoke-on-Trent. Families linked to manufacturers such as Spode and Minton were instrumental in shaping the area's housing stock, which explains why numerous local hallways and entrance passages continue to feature original Victorian geometric and encaustic tiled floors today.

Recognising the Visible Issues Impacting Your Floor

The darkened joints throughout the Penkhull hallway highlighted where old coatings, trapped dirt, and cleaning residues had accumulated in the gaps between tiles over many years. The floor exhibited multiple simultaneous issues, including muted colours, dull patches, edge staining, and isolated areas where tiles had begun to shift slightly underfoot.

The clay tile surface reacted inconsistently, as some areas retained more contaminants than others while it remained concealed beneath the carpet. This inconsistency is vital when assessing a period floor; it was never intended to be perceived as a perfectly flat modern surface but rather as an original hallway burdened by ancient coverings, potential adhesive residues, historical moisture exposure, and natural colour variations throughout the installation.

The Penkhull project mirrored the Minton tile floor restoration in Ovington, where challenges relating to old coatings, carpet-related contamination, loose tiles, and colour recovery defined the scope of work. Both projects featured original patterned floors that necessitated painstaking restoration rather than a generic cleaning method. The Penkhull hallway presented its own unique pattern layout, movement history, residue accumulation, and moisture behaviour.

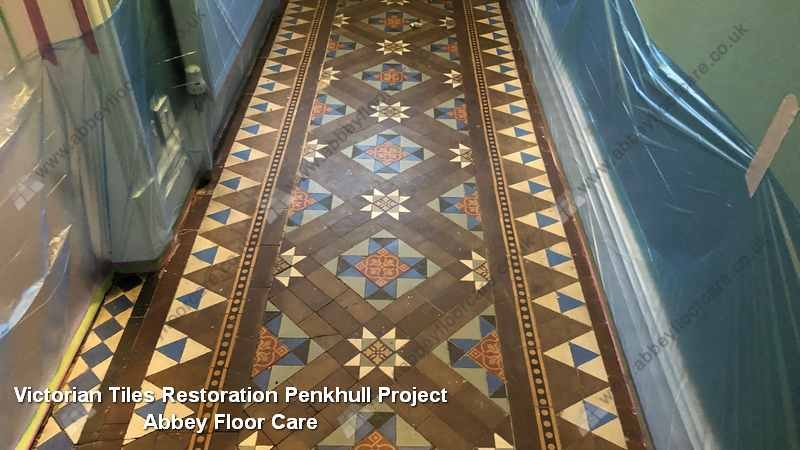

Once the primary covering was removed, the original patterns became distinctly visible. The vibrant colours had merely been hidden beneath years of contamination that dulled the surface and muted the contrast between the geometric sections. There was no need to artificially create anything; the character of the floor was already embedded within the original layout, borders, and surviving Minton-style detailing.

Comprehending Homeowner Concerns and Documenting Project Evidence

The homeowner expressed a desire for the entrance hall to regain a clean and welcoming atmosphere while preserving the historical significance that justified the floor's restoration. Despite years of neglect, the surviving pattern lines, original surface, and remaining colours all suggested that the floor merited careful restoration from the very first inspection to the final results.

Movement within the hallway was noticeable long before it became visually apparent. This aspect often holds significance with old tiled floors, as loose sections, lifting edges, and unstable bedding can result in a surface that appears worse after repeated mopping, especially where moisture travels through permeable sub-floors and no effective damp-proof barrier exists beneath the installation.

Carpets and other floor coverings frequently leave behind adhesive residues, gripper damage, staining, and dark shadow marks on older tiled surfaces. The Penkhull hallway exhibited the same type of concealed-floor evidence discussed in the Trinity Edinburgh Victorian tile restoration case study, where impervious coverings and traditional hallway construction influenced what could be safely achieved. Importantly, the visible surface rarely tells the complete story until the floor is uncovered and thoroughly evaluated.

Victorian encaustic and geometric tiles are clay-fired at high temperatures, rendering the fired surface chemically stable yet physically susceptible to abrasion and unsuitable for acidic cleaning methods. This consideration was crucial here, as worn fire skin, vulnerable edges, trapped residues, and historical colour variations had to be acknowledged as existing floor conditions rather than merely treated as superficial dirt.

The original tile face maintained a fired matte surface, which did not require polishing away. A properly restored Victorian tile floor should still retain that matte character, while any appropriate topical protection adds only a restrained protective sheen without altering the period appearance of the floor itself.

Investigate the Causes of Loose Victorian Hallway Tiles and Dark Grout Lines

Dark grout lines and slight movement often indicate underlying issues hidden beneath the visible surface. In the Penkhull hallway, dirty liquids infiltrated grout joints, weakened bedding areas, gaps, and deteriorated sections, resulting in repeated mopping that only offered a temporary semblance of cleanliness before the same dark lines resurfaced.

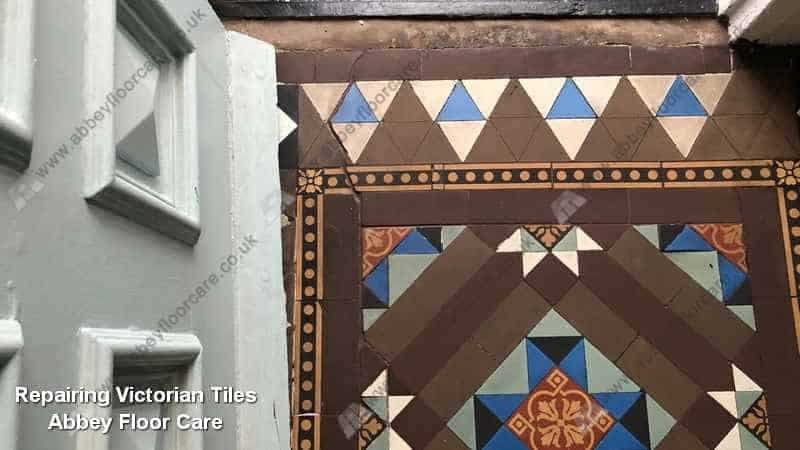

Loose tiles further confirmed that sections of the old floor system had become unstable, rather than merely dirty on the surface. Water could seep through vulnerable joints, increasing dampness within the permeable sub-floor below, leading to isolated tiles becoming loose, lifting, or sounding hollow where the structure was no longer sufficiently dry or secure for sealing.

Dark joints and loose tiles typically stem from the floor system, not solely from dirt.

The same connection between movement, trapped residues, and traditional floor behaviour is evident in the Walsall Minton floor restoration. This comparison clarifies why the Penkhull hallway required treatment as a comprehensive restoration project rather than a quick surface clean. The visible symptom was dark grout lines, while the underlying issue lay in contamination trapped within a moving floor structure.

Employing Gentle Victorian Tile Restoration Techniques with Controlled Cleaning Methods

Aggressive stripping techniques can leave an old Victorian tile floor excessively wet for prolonged periods, making it slower to stabilise and much harder to dry safely prior to sealing. In Penkhull, therefore, the hallway underwent cleaning through a series of controlled passes, rather than a single heavy application of water and strong chemicals.

Gentle repeated cleaning allowed softened residues, waxes, old coatings, and contaminated solutions to gradually release from the tile pores. Wet vacuum extraction subsequently removed slurry, rinse water, loosened soiling, and dirty fluids after each pass, helping to reduce the risk of over-wetting, salt mobilization, or further disturbance within weakened bedding areas.

Heavy wet stripping would have increased the likelihood of excess moisture penetrating the floor, thereby delaying the drying process before sealing. Similar principles of colour recovery are explored in restoring colour and pigment to faded Victorian mosaic tiles. In this Penkhull project, the improvements stemmed from controlled extraction, gradual residue removal, and patience, rather than force.

Transforming Restored Victorian Hallway Tiles in Penkhull into a Stunning Feature While Preserving Their Original Character

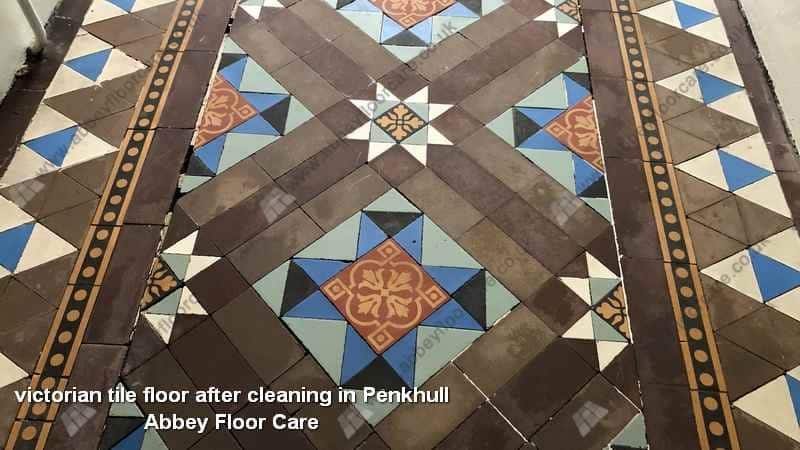

If your restored Victorian hallway appears cleaner yet still exhibits signs of age, that is often the intended outcome for an original period floor. The Penkhull hallway looked significantly improved after restoration, showcasing stronger colours, clearer pattern definitions, and a more even matte appearance that still honoured the natural signs of age and use.

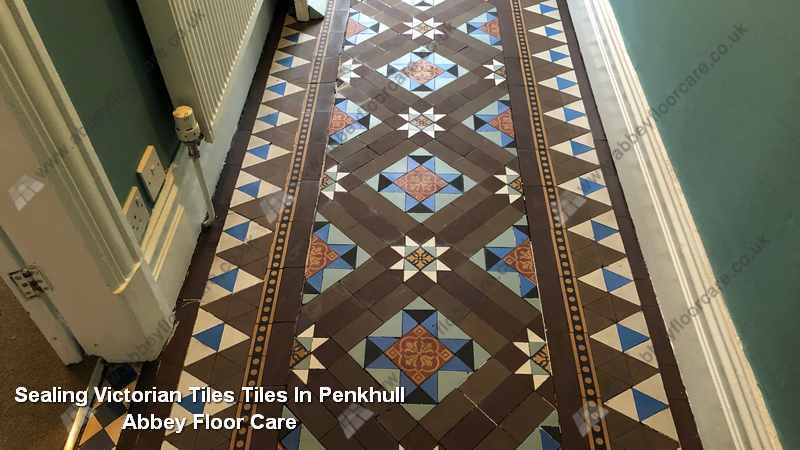

The enhancement of colour was achieved through the application of a breathable impregnating sealer that penetrated the tile pores, boosting protection, and was subsequently buffed away from the surface without leaving behind a heavy topical coating. The hallway also became easier to maintain, as dirt and residues were no longer binding so aggressively to the open contaminants resting on the surface.

Proper maintenance is vital for prolonging the life of Victorian tiles, which involves removing grit before wet mopping, using pH-neutral cleaning products, and resealing at sensible intervals. It is advisable to avoid steam cleaners, as heat and moisture can force water into grout lines, cracks, staining, and areas susceptible to efflorescence. Broader maintenance guidance is available in the Victorian and Minton tile cleaning hub, which offers extensive care advice beyond this particular Penkhull case study.

Explore Additional Victorian Tile Restoration Projects Showcasing Thoughtful Restoration of Period Hallway Floors

Related projects in Victorian tile restoration assist homeowners in comparing similar floors without reducing this case study to broad, generic guidance. The Penkhull hallway details a complete sequence of work: carpet removal, residue discovery, correction of loose tiles, repeated cleaning, drying, sealing, and final inspection.

Other completed projects also demonstrate how original Minton and Victorian floors can regain clarity while still preserving their period character. The Burton on Trent Victorian clay tile restoration highlights another period floor where residue removal, moisture management, and colour recovery defined the final results. Collectively, these projects uphold the same evidence-based principle: restoration should significantly enhance the floor without erasing the history visible within the original surface.

The Penkhull project further emphasises why detailed maintenance guidance should be included within the material hub rather than becoming a separate sales pitch within the case study itself. The Victorian and Minton tile cleaning hub encompasses broader topics including residue build-up, moisture behaviour, grout lines, and safe routine care. This Penkhull hallway serves as a prime example: a hidden Staffordshire entrance floor was meticulously restored and made significantly easier to maintain.
